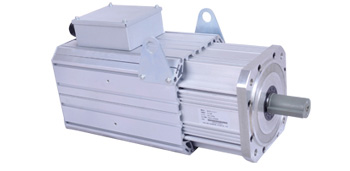

Products Home > Products > ZM180 Series 70-210Nm Servo Motor
Advantage of IMM dedicated servo motor-air cooling :

1.the company according to customer demand customization air / water cooled motor

2.the motor can application on injection molding machines, also can be used as general-purpose servo motors

3.the motor response speed, high efficiency

4.low noise, low temperature

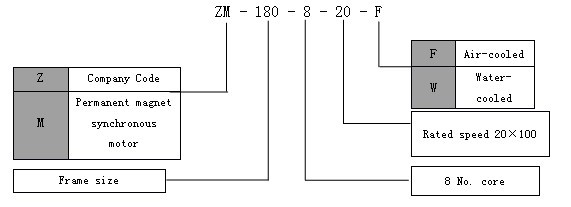

Servo Drive Naming Rules
ZM180 servo motor parameters and the pump displacement relationship
Type Rated torque (Nm) Rated current
(A) 		Rated speed (rpm) Rated frequency
(Hz) 		Rated voltage (V) Rated power
(kW) 		EMF
(V) 		Maximum torque / rated torque Pump displacement
(cc/rev)		 Remarks
ZM180-3-15 53 17 1500 100 380 8.3 305 250% 31.5

Motor configuration of PTC and resolver

ZM180-3-20 22 2000 133.3 380 11 290 250% 31.5
ZM180-4-15 70 23 1500 100 380 12.6 290 250% 40
ZM180-4-20 28 2000 133.3 380 15 290 250% 40
ZM180-5-15 88 27 1500 100 380 13.7 310 250% 50
ZM180-5-20 32 2000 133.3 380 18 310 250% 50
ZM180-6-15 105 35 1500 100 380 16.5 300 250% 63
ZM180-6-20 42 2000 133.3 380 22 310 250% 63
ZM180-8-15 140 49 1500 100 380 22 280 250% 80
ZM180-8-20 60 2000 133.3 380 29.5 300 250% 80

Note: The motor and pump displacement corresponding system pressure 140kgf injection molding machine; 175kgf the presses, the corresponding relations of the motor and pump configuration.
